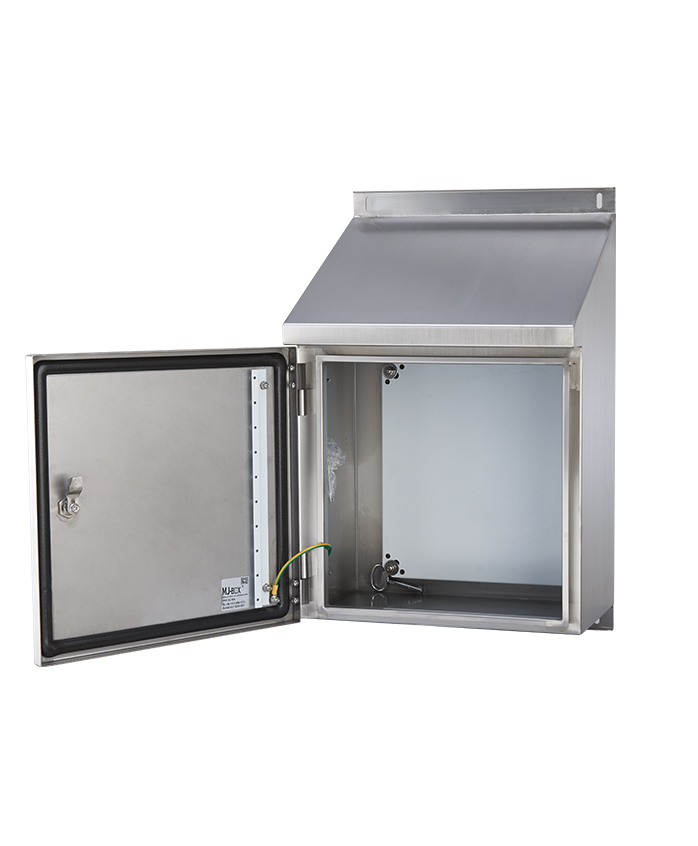

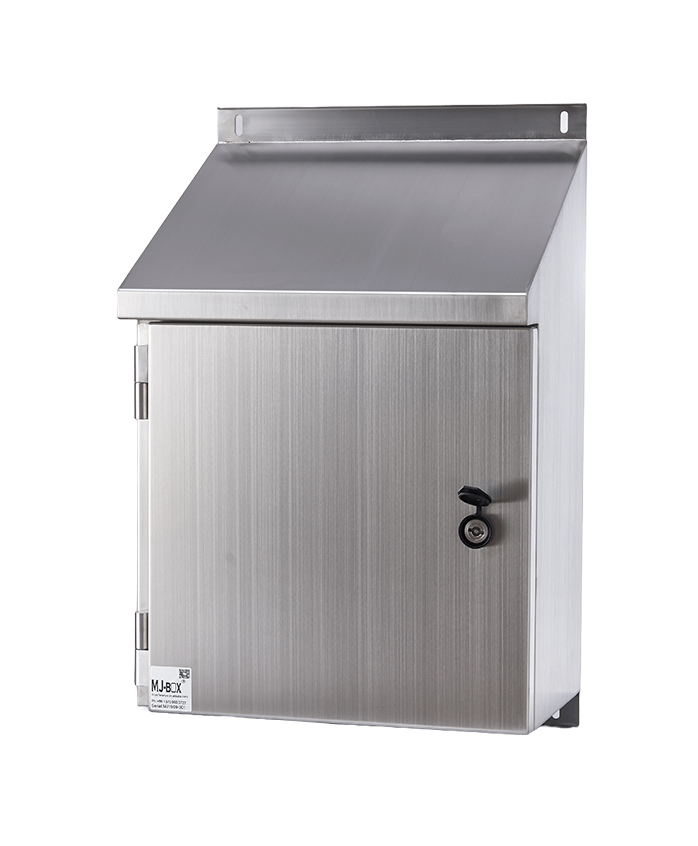

30° Sloped Roof Enclosure

The combination of 30° inclined roof design and IP66 can better resist heavy rain and dust in the air. It is very suitable for food processing plants, construction sites, etc. to fight against airborne particles.
-- 30°angled roof design prevents debris accumulation

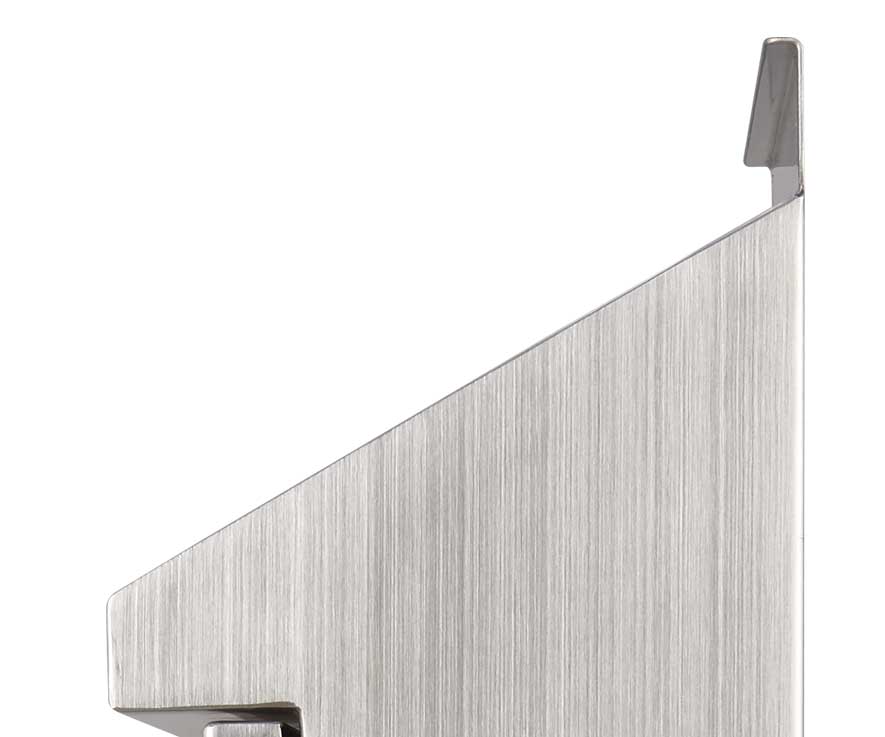

-- Both top and bottom have flange for easy wall mounting

Provide You with Better Service

High Strength Load-Bearing

30° Sloped-roof enclosures feature flanged wall-mount design with robotic laser full-welded seams, delivering 1500kg load capacity – 3X stronger than standard bolt-on brackets.

Globally Certified Accessories

All components utilize our proprietary-designed molds, precision-engineered for perfect compatibility. Certified with CCC, CE, and international safety standards to ensure reliable performance in global electrical systems

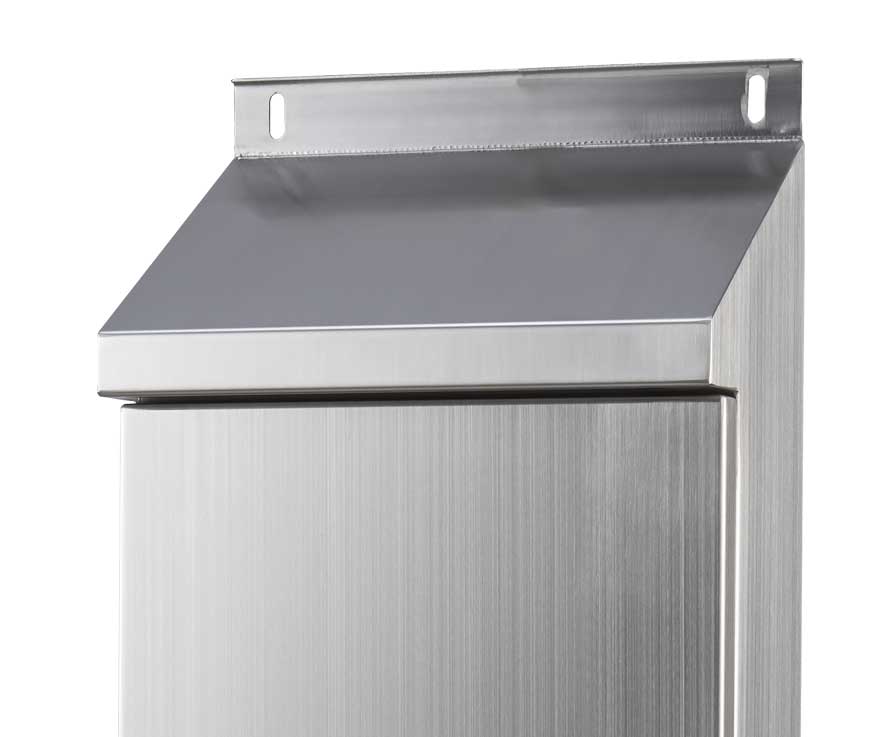

30° Self-Cleaning Roof Defense

The steep 30° sloped roof design can actively shed foreign matter and prevent water accumulation through gravity.

Provide You with Better Service

Each enclosure is subjected to stringent quality control measures, including plate testing, IP66 waterproof certification, drop tests, cross-cut tests, and powder coating thickness assessments. Engineered for superior durability, our enclosures guarantee consistent performance and unwavering safety across all applications.
Raw Material Testing

Raw Material Testing

Powder Thickness Test

Powder Thickness Test

IP66 Waterproof Test

IP66 Waterproof Test

IP6X Dust Test

IP6X Dust Test

IEC Standard Drop Test

IEC Standard Drop Test

Sealing Strip Tensile Test

Sealing Strip Tensile Test

Product Specifications

Order Number High(mm) Width(mm) Depth(mm) Locks
SS-SR-300x200x150
SS-SR-400x300x200
SS-SR-400x400x200
SS-SR-500x400x200
SS-SR-600x400x200
SS-SR-600x500x200
SS-SR-600x600x300
SS-SR-800x600x300
SS-SR-1000x600x300
SS-SR-1200x800x400
300
400
400
500
600
600
600
800
1000
1200
200
300
400
400
400
500
600
600
600
800
150
200
200
200
200
200
300
300
300
400
1
1
1
1
2
2
2
2
2
2
